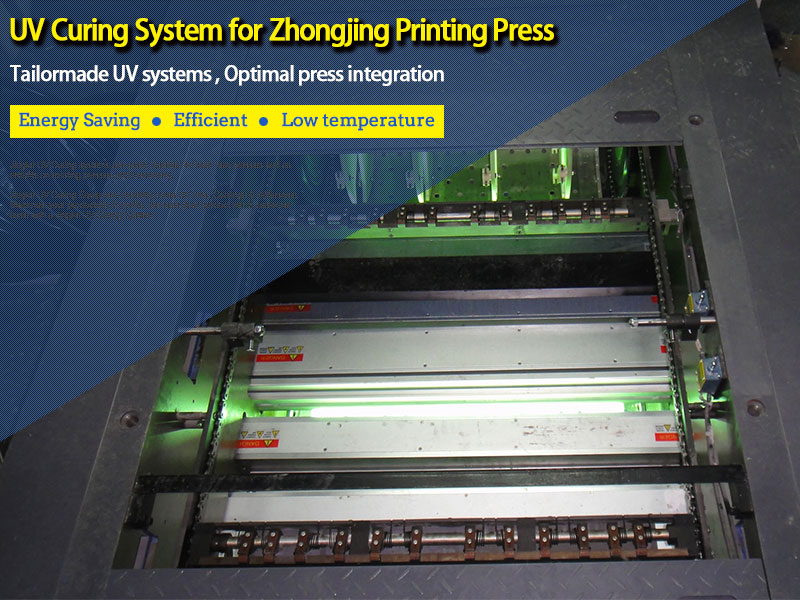

UV Curing System for Zhongjing Printing Press

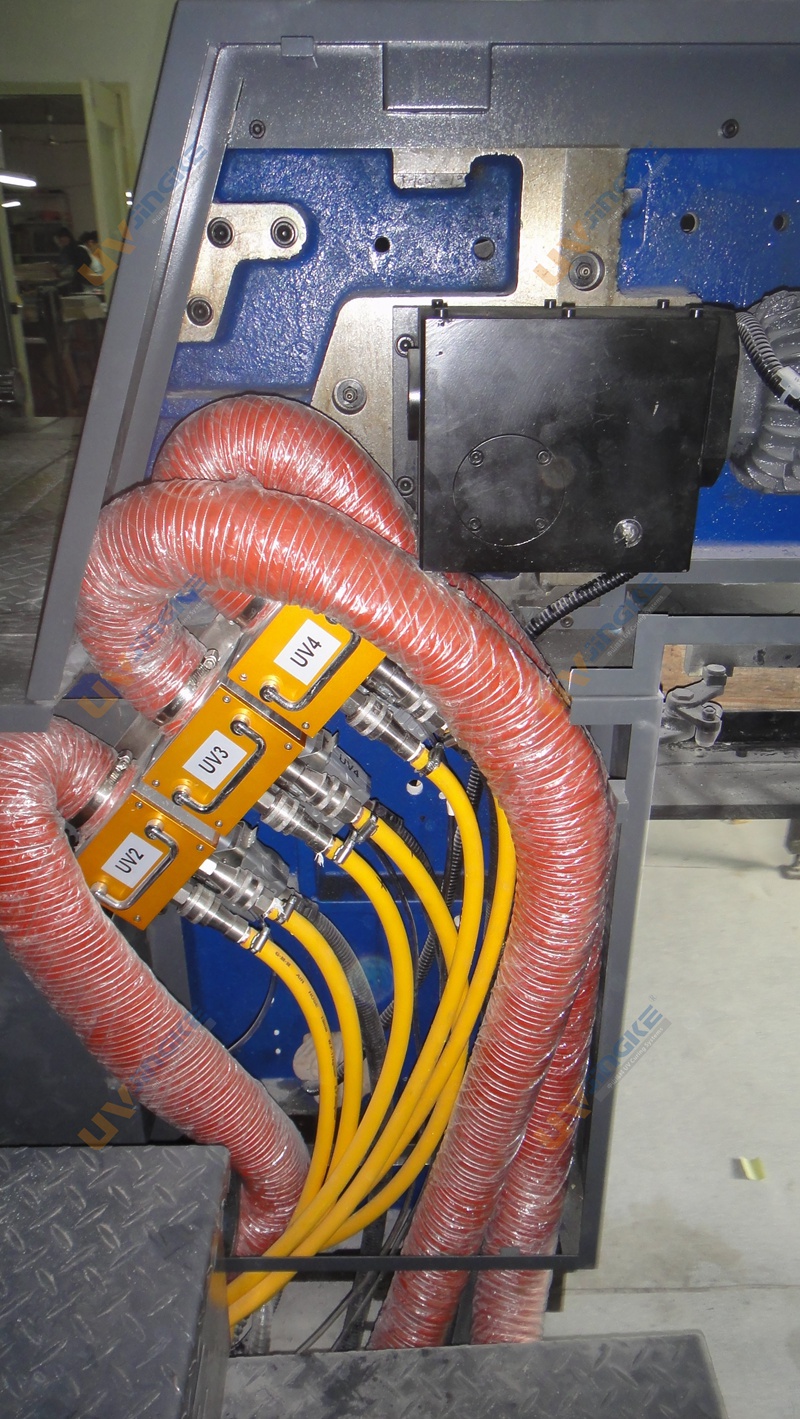

Cooling system

The water cooling system of the shutter and reflector ensures that excess heat during printing can be effectively removed. In addition, the built-in air cooling device not only for the UV lamp to provide continuous cooling, can also produce a small amount of ozone generated in the production process.

The Stepless control system of UV Lamp Power

Depending on the printing speed, the control system can freely adjust the output power of the UV lamp between 20% and 100%. In the standby phase, the output power of the UV lamp is automatically reduced.

High security

The miniature limit switch sensor controls the position of the reflector, and both the reflector and the interior of the light box are fitted with a temperature sensor to prevent the system from overheating.

Easy maintenance

All UV curing unit components, including lamps, reflectors and pneumatic devices can be easily maintained. The lamp can be replaced quickly and easily, shortening the standby time.

Compact UV module design

Compact water-cooled module light box using a one-time extrusion of aluminum to ensure the highest product quality and minimum space requirements.

Installation

With over 10 years experience installing UV and IR systems on printing machines, Jingke knows what works.
